Trust adviser
Satisfactory
Excellent Readability
Intuitive alphanumeric keypad and LCD displays text and graphs clearly. Choose the best display style for your needs and read all information on a single screen.
Smart Database Management and Versatile Applications
Transaction database can save each result to aid in traceability. Article presetting recalls information to easily-manage thousands of article IDs. Flexible label templates can be designed according to customer needs for easy printing.
Connectivity and Mobility Options
A RS232 interface enables the scale to communicate with printers, barcode readers and more, for high flexibility and fast operation. Replaceable batteries allow mobile operation of the ICS241.
| Type | ICS241-03101 | ICS241-06101 | ICS241-15101 | ICS241-30101 |
| Material No | 30045836 | 30045837 | 30045838 | 30045839 |

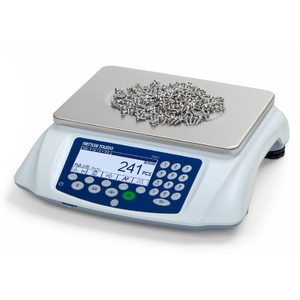

Specifications - Counting Scale ICS241
| ICS241-03101 | ICS241-06101 | ICS241-15101 | ICS241-30101 | |
| Maximum Capacity | 3 kg | 6 kg | 15 kg | 30 kg |
| Readability | 1 g | 2 g | 5 g | 1 g |
| Repeatability (sd) | 1 g | 2 g | 5 g | 1 g |
| Protection Rating | IP65 | |||
| Platform Size (LxHxW) | 230 mm x 112.5 mm x 306 mm | |||
| Dimensions (LxHxW) | 230 mm x 112.5 mm x 306 mm | |||
| Interfaces | RS232 | |||
| Repeatability, typical | 1 g | 2 g | 5 g | 1 g |
| Scale Interface | Analog | |||
| Display | Graphic LCD with backlight | |||
| Data Interface | Serial | |||
| Environment | Dusty & Light Wet (IP65) | |||
| Hazardous Area | Non-hazardous area | |||
| Voltage | Battery Version AC Version |
|||
| Hazardous Approval | No | |||
| Hygienic Design | No | |||
| Platform Type | Counting Scales | |||
