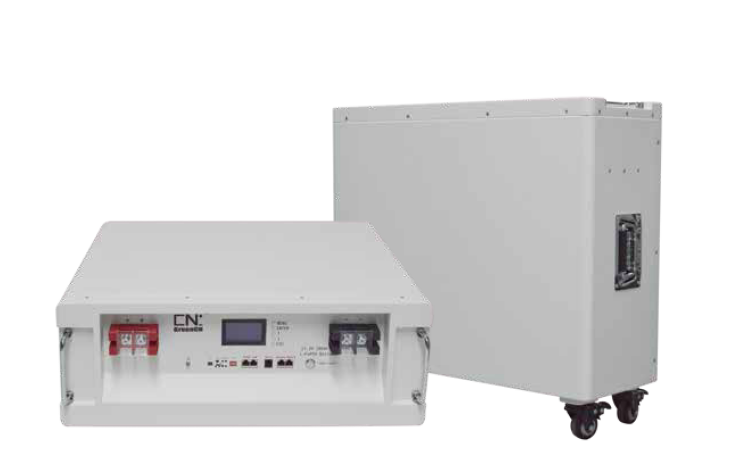

Large Capacity Rack Battery Packs
Basic Specifications
| Power supply model | LF-HPS-51.2V230Ah | LF-HPS-51.2V280Ah |
| Nominal voltage | 51.2V | |
| Nominal capacity | 230Ah/11.776kWh | 280Ah/14.336kWh |
| Charging protection voltage | 56.8V | |
| Discharge protection voltage | 46.4V | |
| Recommended charging current | ≤50A | ≤100A |
| Maximum charging current | ≤95A | ≤190A |
| Recommended discharge current | ≤50A | ≤100A |
| Maximum discharge current | ≤105A | ≤200A |
| Battery cycle life | ≥6000（25°C±2°C，0.5C charge-discharge，DOD≥80%） | |
| Charging temperature | 5~55℃ | |
| Operating temperature | -20~60℃ | |
| Battery weight | ≈100Kg | ≈116Kg |
| Battery size | 596*650*233mm (Adjustable） |
596*650*233mm (Adjustable） |
| Certification | MSDS、UN38.3 | |
| Communication mode | RS485/RS232/CAN | |
| Adaptable inverter (can customized) |
485：PYLONTECH、TOPBAND、GROWATT、LUXPOWER、CPSYPOWER、SRNE、Felicity solar、ANC、 Shark TopSu CAN：PYLONTECH、Deye、TOPBAND、GROWATT、LUXPOWER、GOODWE、SOFAR、INVT、 MEGAREVO、GINLONG、AFORE、SOROUPS、CFAT、BEITT、MUST、SMA、SACOLAR、TBB |
|
| *Can be customized according to the needs, the final interpretation of this product is owned by the company, subject to change without prior notice |
||
Product Advantages
• Built-in LiFePO4 Battery cells. Large capacity, long cycle life, high safety, environmental
protection；IP54
• Intelligent communication；Built in fire protection module, 15S fast flame retardant
• Built in fire protection module, 15S fast flame retardant
Applications
Electricity at home, shopping malls, supermarkets, hotels and other
public places
